OUR PRODUCTS

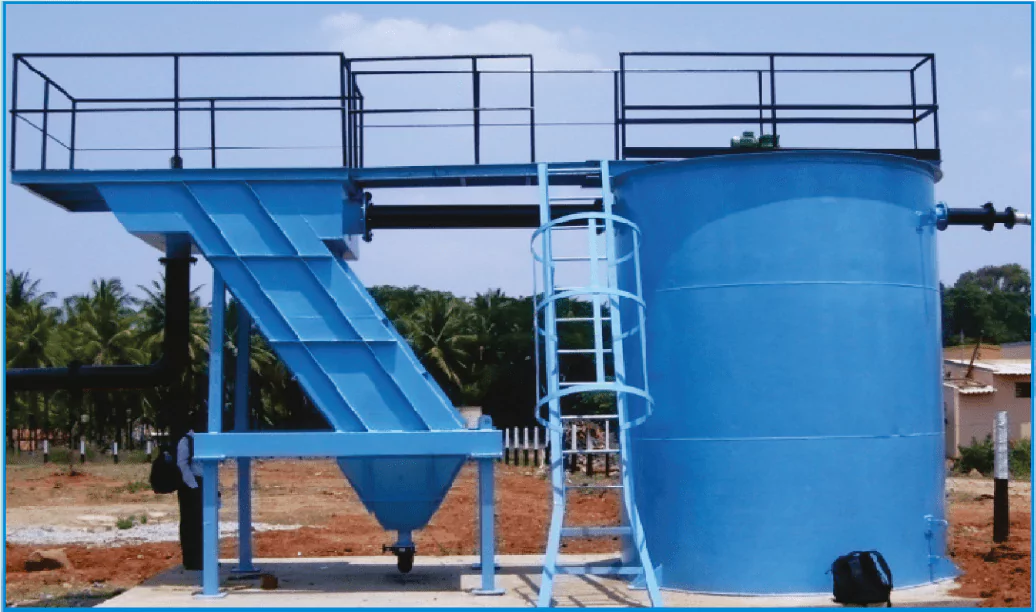

S.M.F.T AND
LAMELLA CLARIFIER

SPECIFICATION
✔ Design Capacity :- 15.00 m3 to 470 m3 / Hour
✔ Filtration Capacity :- Up to 1200 NTU
✔ Observed Efficiency:- 95 to 98 % .
✔ Product Application:- Drinking water Supply for rural / Urban

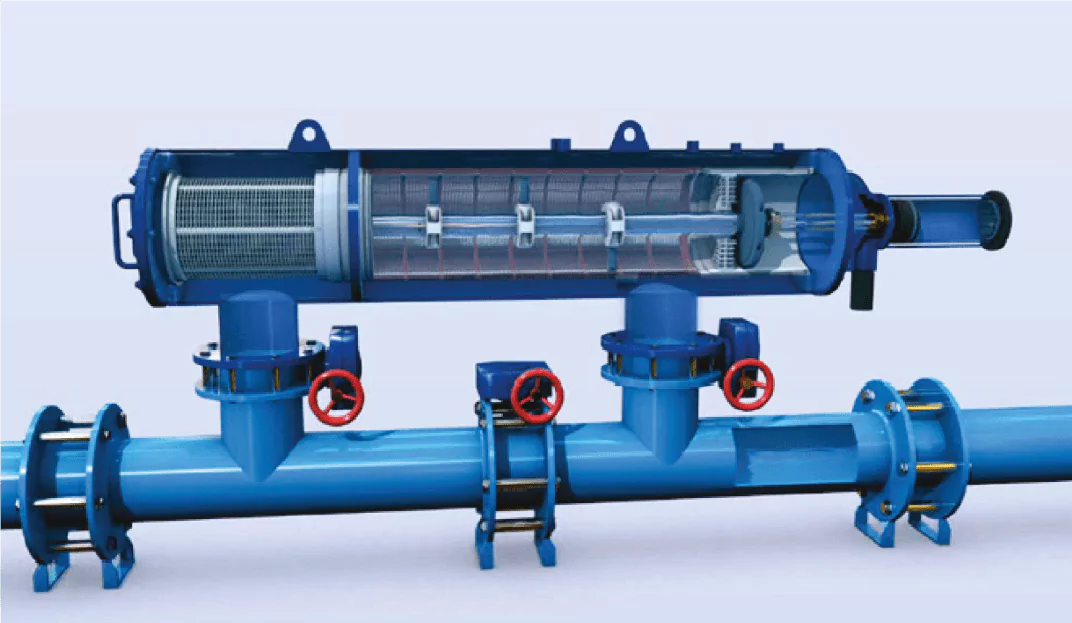

Automatic Online Hydraulic self cleaning screen Filter

SPECIFICATION
✔ 8 m3 to 200 m3 / Hour
✔ 20 microns to 500 microns
✔ Drinking water Supply for rural / Urban
✔ It supports online filtration. Water from the outlet of this system can be directly provided to the next stage of filtration eliminating the need for filter feed tank
✔ Self Cleaning system eliminates the need for manual operation
✔ Clean water flow is maintained during back flush cycle
✔ Utilizes the hydraulic power of water hence No external power source is required
✔ Ensures that there is no particle bigger than the screen openings size in the downstream
✔ The entire system is made of Stainless Steel / Epoxy coated carbon steel
✔ Can operate even at 10 bar pressure
✔ Is extremely compact. Can even be installed on the raising main
✔ The System can be designed to handle even up to 15 MLD.

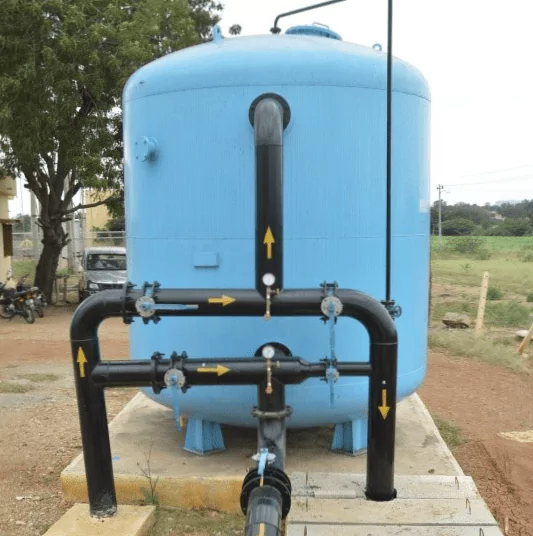

MULTY GRADE FILTER

SPECIFICATION
✔ 10m3 to 210 m3 / Hour
✔ It can reduce turbidity from 50 NTU to less than 1 NTU.
✔ Drinking water Supply for rural / Urban
✔ Depth Filtration which effectively removes suspended particles of all sizes. Can reduce turbidity from 50 ppm to less than 5 ppm
✔ Raw water can be used for back wash. Does not require the construction of additional tank for backwash water storage.
✔ Anthracite filter media prevents channel formation even at high flow rate
✔ Coated with anti- corrosive Food grade lining
✔ Very Easy to install & Low maintenance due to no rotational or moving parts
✔ Requires very less space for installation. A filter for flow rate of 1,00,000 LPH can be installed on a platform of 3 Mtrs x 3 Mtrs.
✔ Can be provided with PLC system for Automatic backwash

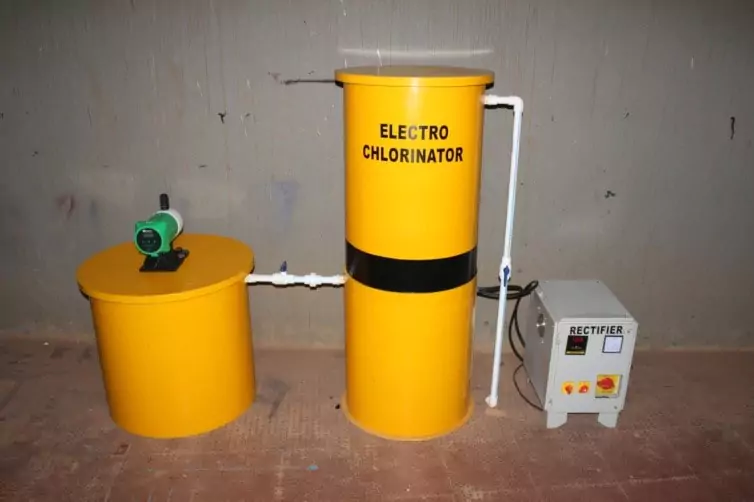

Electro Chlorinator

SPECIFICATION
✔ Design Capacity :- Up to 12.00 m3 / Hour
✔ Type of Chlorinator :- Batch Type
✔Type of Disinfectant :- Sodium Hypochlorite
✔ Product Application:- Drinking water Supply for rural / Urban
✔ Requires only common salt, water and electricity
✔ Provides the power of chlorine without the danger of storing or handling hazardous material
✔ The dosing pump ensures right quantity of sodium hypochlorite

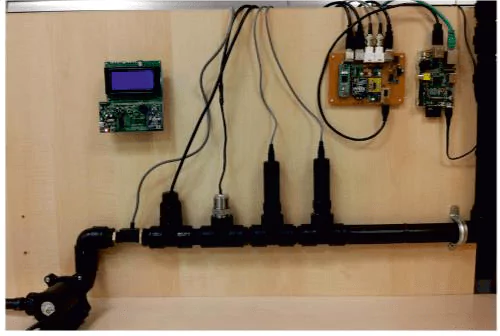

Due Drop Online Monitoring System

SPECIFICATION
✔ Design Capacity :- 0.0 m3 to 470 m3 / Hour
✔ Display System :- Digital
✔ Parameters displayed :- Turbidity , pH , Chlorine
✔ Product Application:- Drinking water Supply for rural / Urban

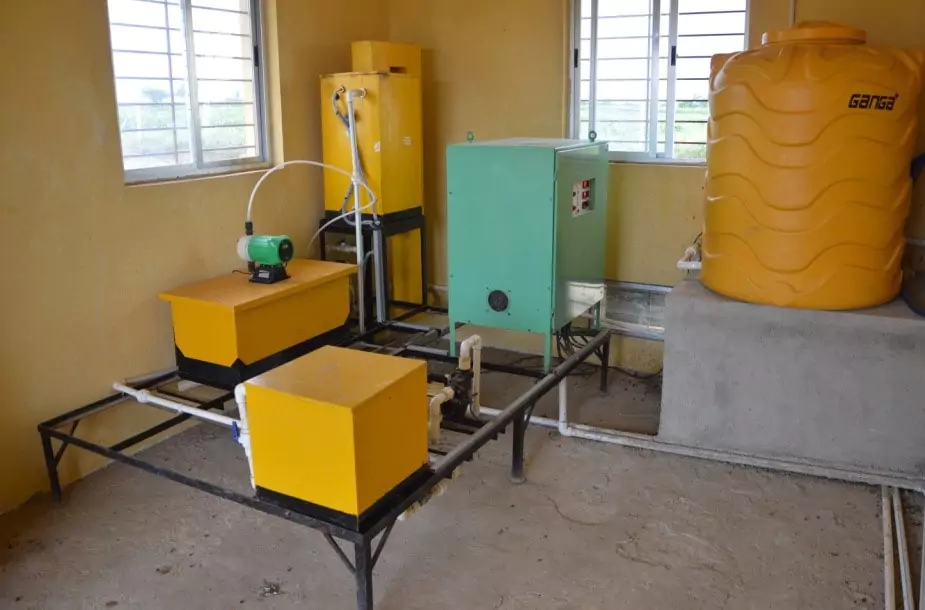

Continuous Electro Chlorinator

SPECIFICATION
✔ Design Capacity :- From 10.00 m3 to 400 m3 / Hour
✔ Type of Chlorinator :- Continuous Type
✔ Type of Disinfectant :- Sodium Hypochlorite
✔ Product Application:- Drinking water Supply for rural / Urban

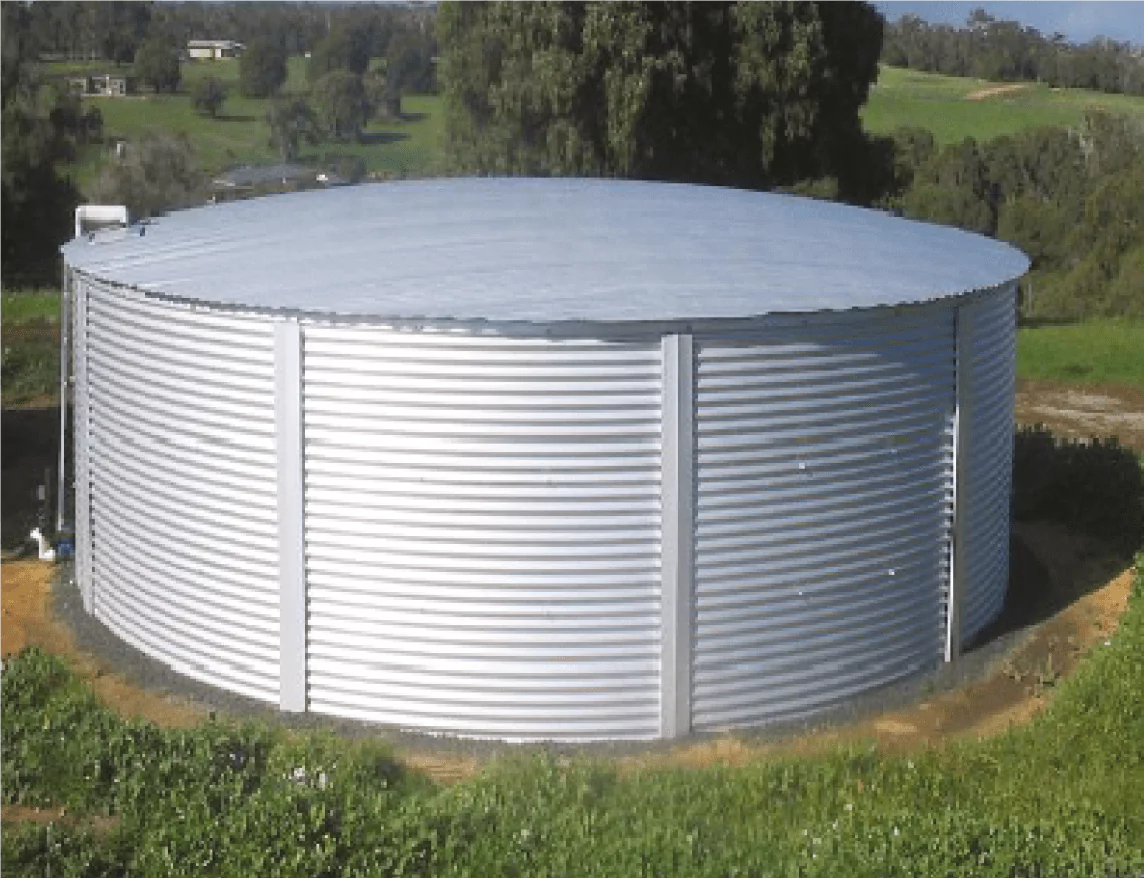

Zincalume steel storage tank

SPECIFICATION
✔ Designed Storage Capacity :- 12 m3 to 4000 m3
✔ Product Application:- Drinking water Supply for rural / Urban
✔ Anti corrosive Zinc aluminum steel walls
✔ Modular, kit form structure. Easy to lift and handle, can be installed almost anywhere. Can also be installed on building roof tops and on project sites where accessibility is restricted.
✔ The tanks can be commissioned and used immediately after installation
✔ Tanks of even 5,00,000 liters can be installed in 30 days.

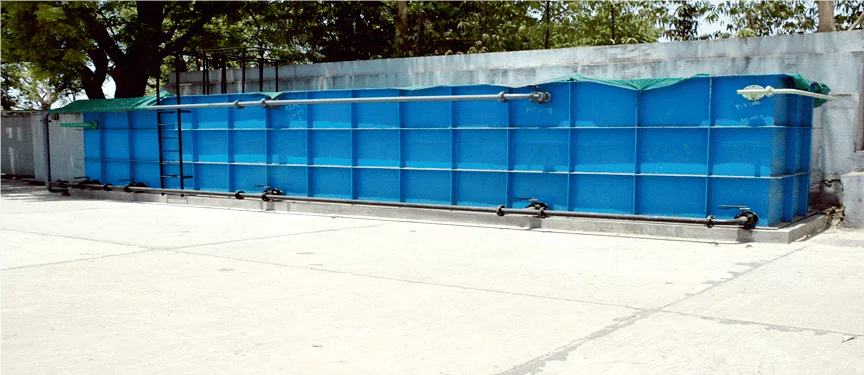

FLUIDISED MEDIA REACTOR (FMR)

SPECIFICATION
✔ Designed Capacity :- 50 m3 to 1000 m3 / Day
✔ Product Application:- Sewage / sullage treatment in Rural
